Schlage GWE2 Gateway Adoption Guide🔗

PACS Integration Guide for ENGAGE Gateway 2🔗



Last modified: 02.26.2026

This guide provides comprehensive information for PACS partners to integrate support for the new ENGAGE Gateway 2 (GWE2) into their software solutions.





Overview🔗

What Is Changing🔗

Allegion is introducing the ENGAGE Gateway 2 (GWE2), the next generation of the ENGAGE Gateway. The GWE2 is a drop-in replacement for the existing GWE and can be used in any deployment scenario where a GWE would have been used.

To support the new GWE2 gateway, PACS software must be updated to recognize and work with the new model type. The changes required are minimal and focused primarily on:

• Recognizing the new gwe2 model identifier in API requests and responses
• Updating any hardcoded references from gwe to support both gwe and gwe2
• Ensuring TLS 1.2 or higher is used for secure communications



Why This Change Is Happening🔗

The GWE2 represents hardware improvements to the ENGAGE Gateway platform, including:

• Improved Bluetooth performance – BLE 5.1 (upgraded from BLE 4)
• Enhanced security – TLS 1.2 and 1.3 only (older, compromised protocols removed)
• WPA3 wireless security – Modern wireless security for mobile app commissioning
• Optimized edge device connectivity – Support for up to 5 edge devices per gateway, optimized for better performance and reliability
• Improved antenna design – Smaller form factor (2.5 inches vs 3.5 inches) with equivalent signal strength

As manufacturing transitions to GWE2, stock of the original GWE will deplete. To ensure your customers can continue to purchase gateways for new installations after April 2026, your PACS software must support GWE2.



Timeline & Deadlines🔗

* Dates listed below are estimated/projected based on available inventory and are subject to adjustment as stock depletes.

Milestone	Date	Details
Schlage GWE2 Adoption Program Begins	February 2026	Partners notified and activation begins
GWE Stock Depletion	Late April 2026	GWE will no longer be available for purchase
GWE2 Shipping Begins	Late April 2026	Partners who have completed integration can order production GWE2 units. Note: Test Devices Available Today.
GWE2 Generally Available	TBD 2026	GWE2 available to order for all integrated partners



Adoption Support Process🔗

The GWE2 adoption process is designed to be straightforward and self-service. Allegion Developer Success will guide you through each step, but we’ve minimized meetings and overhead so your team can focus on the integration work.

Here’s the end-to-end process for adopting GWE2 support:

flowchart LR
  A((KickOff
Meeting))
  B[Review
Docs/Guide
This guide]
  C[Request
Test
Devices
Ticket]
  D[Make Required
Code Changes
& Test]
  E[Complete &
Send Attestation
to Allegion
Ticket]

  A --> B --> C --> D --> E

  style A fill:#CD6620,stroke:#CD6620,color:#fff
  style B fill:#CD6620,stroke:#CD6620,color:#fff
  style C fill:#CD6620,stroke:#CD6620,color:#fff
  style D fill:#CD6620,stroke:#CD6620,color:#fff
  style E fill:#CD6620,stroke:#CD6620,color:#fff

Process Steps Explained🔗

1. KickOff Meeting

   A brief introductory call with your Allegion Business Development Manager and an Allegion Developer Success resource to review the adoption timeline, answer initial questions, and confirm your integration change requirements. This is typically a 30-60 minute call.

2. Review Docs/Guide

   You’re already here! Review this adoption guide to understand the technical changes required. The documentation covers everything you need—API changes, code examples, and testing guidance.

3. Request Test Devices

   Submit a support ticket to request GWE2 test hardware. See the Requesting Test Devices section for detailed instructions.

4. Make Required Code Changes & Test

   Implement the integration changes outlined in the How-To Guide section. Test thoroughly with your GWE2 hardware.

5. Complete & Send Attestation to Allegion

   Once testing is complete, fill out the GWE2 Adoption Attestation Sheet and submit it via support ticket.

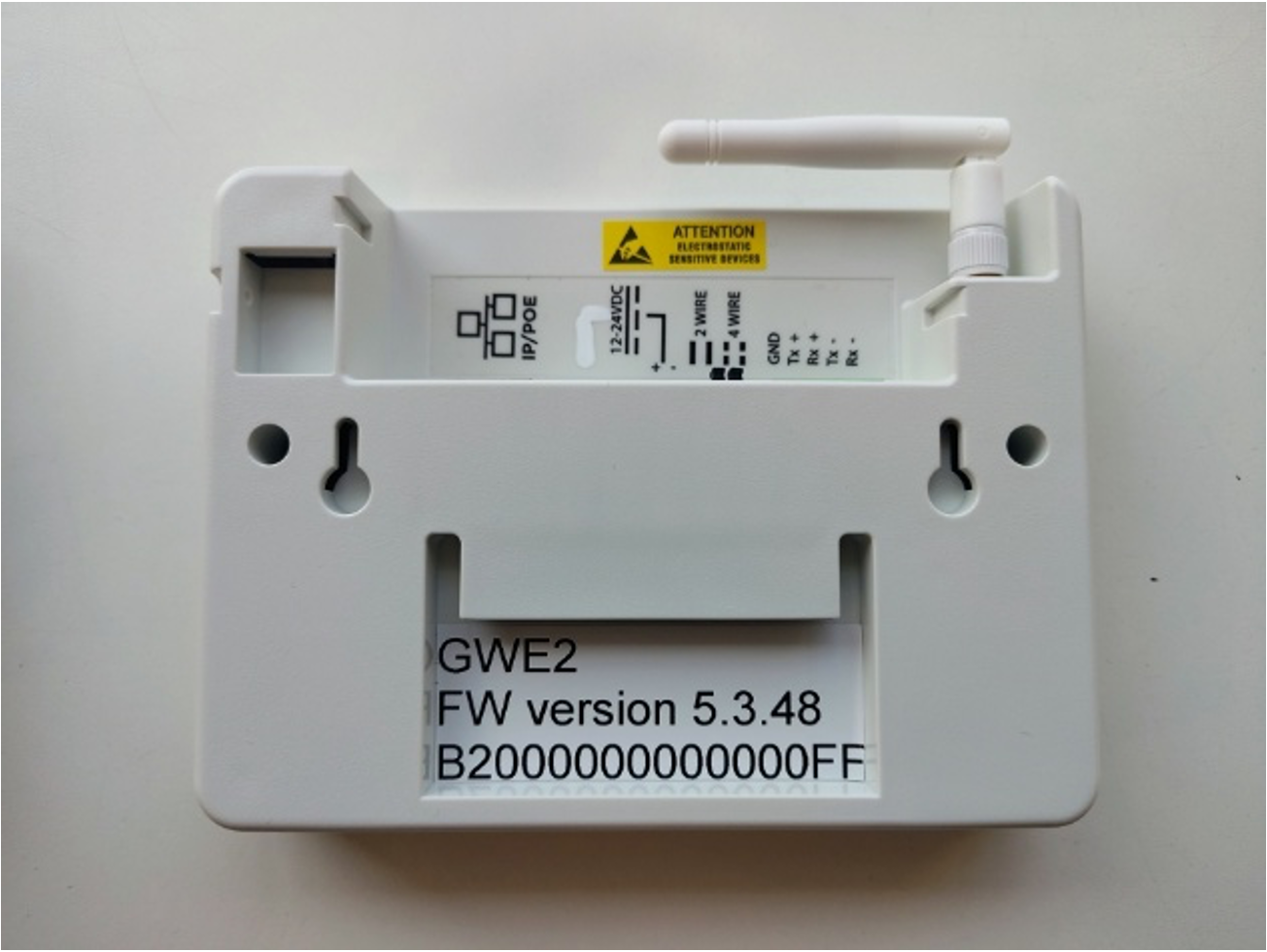

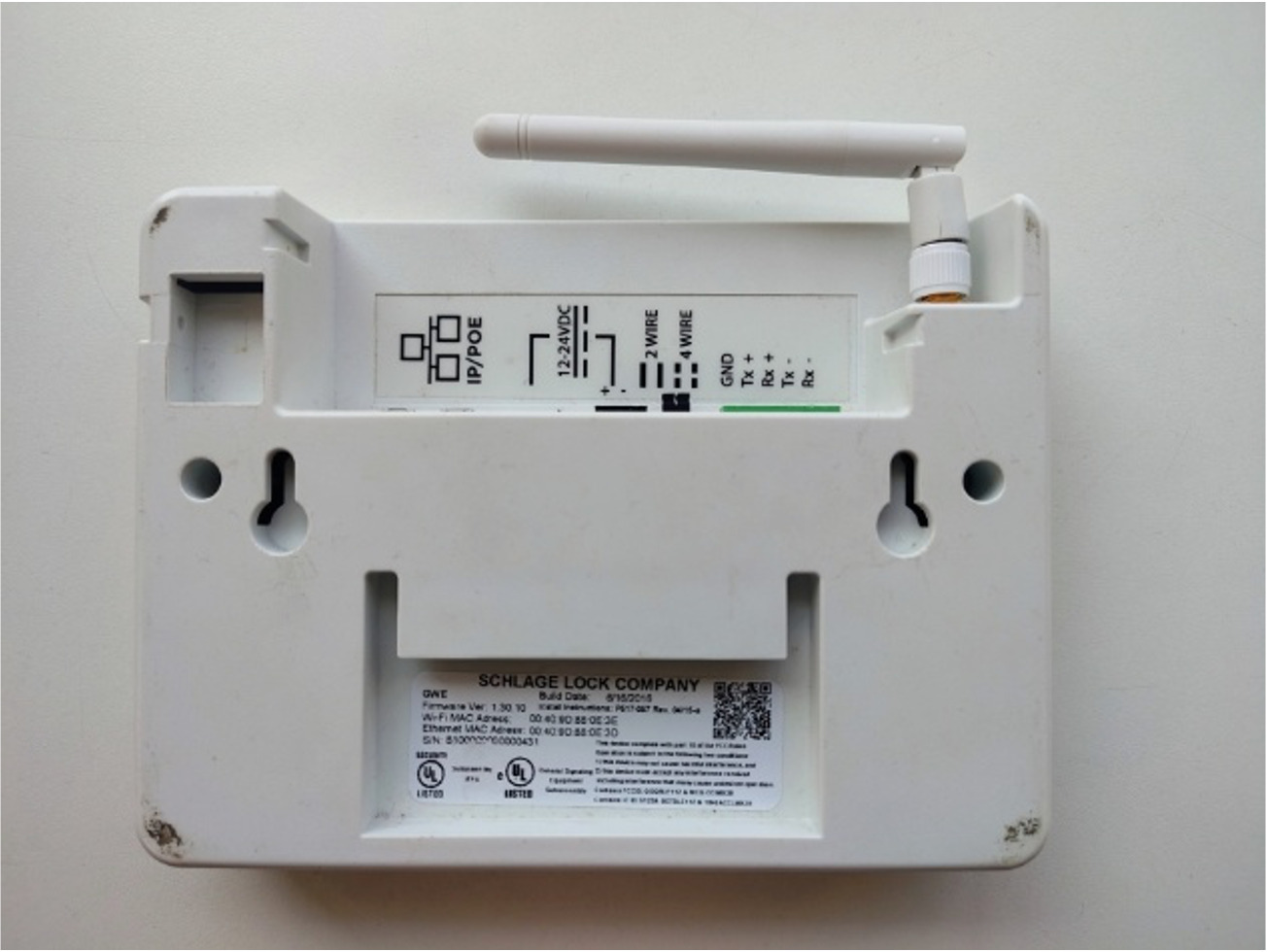

Quick Reference: GWE vs GWE2 Label🔗





Feature Comparison🔗

Feature	GWE (Original)	GWE2 (New)	PACS Impact
Model Identifier	gwe	gwe2	Code Change
Serial Number Prefix	Starts with B1	Starts with B2	Detection
Max Edge Devices	Up to 10 devices	Up to 5 devices	Planning
Bluetooth Version	BLE 4	BLE 5.1	No Change
TLS Support	SSLv3, TLS 1.0, 1.1, 1.2, 1.3	TLS 1.2, 1.3 only	May Require Update
Wi-Fi Security (Mobile App)	WPA2	WPA3 only	Mobile Device
Zero-Config Commissioning	Supported	Not supported	Use DHCP/Static
Gateway Firmware Updates via ONR	Supported via RSI ACP	Supported via RSI ACP in Q2 2027; via ENGAGE Mobile App today (BLE)	Minimal Impact
RSI Protocol	Full RSI support	Identical RSI support	No Change
Websockets Support	Full support	Identical support	No Change
Supported Edge Devices	NDE, LE, NDEB, LEB, Control, CTE, RMRU	NDE, LE, NDEB, LEB, Control, CTE, RMRU	No Change



How-To Guide: Implementing GWE2 Support🔗

This section provides step-by-step guidance for updating your PACS software to support both GWE and GWE2 gateways. Your integration approach determines which changes are required:

• IP/Ethernet Mode
• RSI/RS-485 Mode
• TLS Requirements
• Model Detection

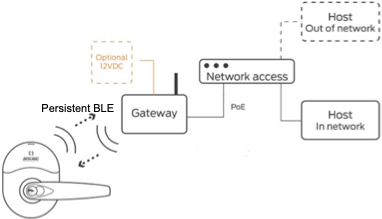

IP/Ethernet Mode Integrations (410IP)🔗

If your PACS communicates with the ENGAGE Gateway over IP/Ethernet, you will need to update your code to handle the new gwe2 model identifier.

API Endpoint Changes🔗

The following API endpoints include the model type in the URL path. Your code must be updated to use gwe2 when working with GWE2 devices:

Operation	GWE Endpoint	GWE2 Endpoint
Get Device Defaults	GET /engage/sites/{siteReference}/devicedefaults/gwe	GET /engage/sites/{siteReference}/devicedefaults/gwe2
Set Device Defaults	POST /engage/sites/{siteReference}/devicedefaults/gwe	POST /engage/sites/{siteReference}/devicedefaults/gwe2
Update Device Defaults	PUT /engage/sites/{siteReference}/devicedefaults/gwe	PUT /engage/sites/{siteReference}/devicedefaults/gwe2
Get Firmware	GET /engage/firmware/gwe	GET /engage/firmware/gwe2



API Response Changes🔗

The following API responses will return a different model identifier (gwe2 instead of gwe) when working with GWE2 devices:

GET /engage/devices/site/{siteReference}🔗

GWE Response:

[
  {
    "DeviceReference": "",
    "FriendlyName": "Gateway",
    "DeviceType": "gwe",
    "SerialNumberShort": "B100000000000212",
    "SerialNumberLong": "0000000000000000B100000000000212",
    "Timestamp": "635857249394447548"
  }
]

GWE2 Response:

[
  {
    "DeviceReference": "",
    "FriendlyName": "Gateway",
    "DeviceType": "gwe2",
    "SerialNumberShort": "B200000000000212",
    "SerialNumberLong": "0000000000000000B200000000000212",
    "Timestamp": "635857249394447548"
  }
]

GET {{GatewayIP}}/gateway/deviceInfo🔗

The gateway’s direct device info endpoint will return "mdl": "gwe2" in the response:

{
  "gatewayDeviceInfo": {
    "fwVer": {
      "main": "1.49.10",
      "ble2": "0.0.7",
      "mainBl": "2014.10.0.2",
      "macAdr": "00409D63028E",
      "ethernetMacAdr": "00409D63028D"
    },
    "gatewayParameters": {
      "hostProtocol": "ipEngage",
      "deviceName": "Gateway IP Mode",
      "mdl": "gwe2",
      "mainSn": "a0b1000000000206",
      "mfgDt": "20150515",
      "hwVer": "01"
    }
  }
}



Recommended Code Pattern🔗

Your PACS software should support both GWE and GWE2 simultaneously and for the foreseeable future, as both device types will remain in the field. Here is a recommended pattern:

// Function to determine correct endpoint based on device type
function getDeviceDefaultsEndpoint(siteReference, deviceType) {
  const modelType = deviceType.toLowerCase(); // 'gwe' or 'gwe2'
  return `/engage/sites/${siteReference}/devicedefaults/${modelType}`;
}

// Function to get firmware endpoint
function getFirmwareEndpoint(deviceType) {
  const modelType = deviceType.toLowerCase(); // 'gwe' or 'gwe2'
  return `/engage/firmware/${modelType}`;
}

// Example: Fetch device defaults for a specific gateway
async function getGatewayDefaults(siteReference, gateway) {
  const endpoint = getDeviceDefaultsEndpoint(siteReference, gateway.DeviceType);

  const response = await fetch(`${ENGAGE_API_BASE}${endpoint}`, {
    method: "GET",
    headers: {
      Authorization: `Bearer ${accessToken}`,
      "Content-Type": "application/json",
    },
  });

  return response.json();
}

// Example: Handle devices from site, supporting both GWE and GWE2
async function processGateways(siteReference) {
  const devices = await getSiteDevices(siteReference);

  for (const device of devices) {
    if (device.DeviceType === "gwe" || device.DeviceType === "gwe2") {
      console.log(
        `Processing ${device.DeviceType} gateway: ${device.SerialNumberShort}`,
      );
      const defaults = await getGatewayDefaults(siteReference, device);
      // Process gateway...
    }
  }
}

import requests

def get_device_defaults_endpoint(site_reference: str, device_type: str) -> str:
    """Determine correct endpoint based on device type."""
    model_type = device_type.lower()  # 'gwe' or 'gwe2'
    return f"/engage/sites/{site_reference}/devicedefaults/{model_type}"

def get_firmware_endpoint(device_type: str) -> str:
    """Get firmware endpoint for device type."""
    model_type = device_type.lower()  # 'gwe' or 'gwe2'
    return f"/engage/firmware/{model_type}"

def get_gateway_defaults(site_reference: str, gateway: dict) -> dict:
    """Fetch device defaults for a specific gateway."""
    endpoint = get_device_defaults_endpoint(site_reference, gateway['DeviceType'])

    response = requests.get(
        f"{ENGAGE_API_BASE}{endpoint}",
        headers={
            'Authorization': f'Bearer {access_token}',
            'Content-Type': 'application/json'
        }
    )
    response.raise_for_status()
    return response.json()

def process_gateways(site_reference: str):
    """Handle devices from site, supporting both GWE and GWE2."""
    devices = get_site_devices(site_reference)

    for device in devices:
        if device['DeviceType'] in ('gwe', 'gwe2'):
            print(f"Processing {device['DeviceType']} gateway: {device['SerialNumberShort']}")
            defaults = get_gateway_defaults(site_reference, device)
            # Process gateway...

# Get device defaults for a GWE2 gateway
curl -X GET "https://engage.allegion.com/engage/sites/{siteReference}/devicedefaults/gwe2" \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN" \
  -H "Content-Type: application/json"

# Get firmware information for GWE2
curl -X GET "https://engage.allegion.com/engage/firmware/gwe2" \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN" \
  -H "Content-Type: application/json"

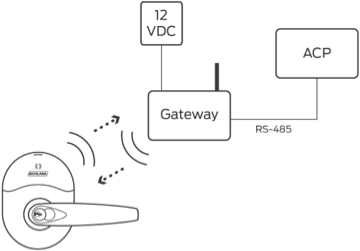

RSI/RS-485 Mode Integrations (410RSI)🔗

If your PACS communicates with the ENGAGE Gateway via RS-485 (RSI protocol), good news: no code changes are required for RSI-mode integrations.

Key points for RSI integrations:🔗

• No RSI protocol changes – All commands and responses work identically
• All features supported – Everything that works with GWE works with GWE2
• Gateway Firmware Updates via ONR – Over-the-network (ONR) firmware reflash via RSI ACP is not supported on GWE2 until Q2 2027. Gateway firmware updates must be performed via the ENGAGE Mobile App over BLE between now and Q2 2027.
• Edge Device Firmware Updates from Gateway via ONR – Updating edge device firmware over RSI via the gateway remains fully supported on GWE2

If your RSI integration also uses any ENGAGE Cloud API calls (for site management, etc.), review the IP Mode section for those specific API changes.



TLS Requirements🔗

The GWE2 only supports TLS 1.2 and TLS 1.3. Older protocols (SSLv3, TLS 1.0, TLS 1.1) are not supported.

Verifying and Configuring TLS Version🔗

const https = require("https");
const tls = require("tls");

// Set minimum TLS version to 1.2
const agent = new https.Agent({
  minVersion: "TLSv1.2",
  maxVersion: "TLSv1.3",
});

// Use the agent in your requests
const response = await fetch(gatewayUrl, {
  agent: agent,
});

// Alternative: Set globally for all https requests
tls.DEFAULT_MIN_VERSION = "TLSv1.2";

import ssl
import requests
from requests.adapters import HTTPAdapter
from urllib3.util.ssl_ import create_urllib3_context

class TLSAdapter(HTTPAdapter):
    """Force TLS 1.2 or higher."""

    def init_poolmanager(self, *args, **kwargs):
        ctx = create_urllib3_context()
        ctx.minimum_version = ssl.TLSVersion.TLSv1_2
        ctx.maximum_version = ssl.TLSVersion.TLSv1_3
        kwargs['ssl_context'] = ctx
        return super().init_poolmanager(*args, **kwargs)

# Create session with TLS 1.2+ enforcement
session = requests.Session()
session.mount('https://', TLSAdapter())

# Use the session for your requests
response = session.get(gateway_url)

# Force TLS 1.2
curl --tlsv1.2 -X GET "https://gateway-ip/gateway/deviceInfo"

# Force TLS 1.3
curl --tlsv1.3 -X GET "https://gateway-ip/gateway/deviceInfo"

# Allow TLS 1.2 or higher (recommended)
curl --tlsv1.2 --tls-max 1.3 -X GET "https://gateway-ip/gateway/deviceInfo"



Detecting GWE vs GWE2🔗

Your PACS software should be able to detect whether a gateway is GWE or GWE2. There are two reliable methods:

Method 1: Check the DeviceType/Model Field (Recommended)🔗

The DeviceType field in API responses and the mdl field in gateway deviceInfo responses will clearly indicate the model:

• gwe = Original ENGAGE Gateway
• gwe2 = New ENGAGE Gateway 2

function getGatewayModel(device) {
  // From site devices list
  if (device.DeviceType) {
    return device.DeviceType.toLowerCase(); // 'gwe' or 'gwe2'
  }

  // From gateway deviceInfo response
  if (device.gatewayDeviceInfo?.gatewayParameters?.mdl) {
    return device.gatewayDeviceInfo.gatewayParameters.mdl.toLowerCase();
  }

  return null;
}

function isGWE2(device) {
  return getGatewayModel(device) === "gwe2";
}

Method 2: Check Serial Number Prefix🔗

As an alternative or supplementary check, you can detect the model from the serial number prefix:

• Serial numbers starting with B1 = GWE (Original)
• Serial numbers starting with B2 = GWE2 (New)

function getModelFromSerial(serialNumber) {
  if (!serialNumber) return null;

  const serial = serialNumber.toUpperCase();

  if (serial.startsWith("B1")) {
    return "gwe";
  } else if (serial.startsWith("B2")) {
    return "gwe2";
  }

  return null;
}

def get_model_from_serial(serial_number: str) -> str | None:
    """Detect gateway model from serial number prefix."""
    if not serial_number:
        return None

    serial = serial_number.upper()

    if serial.startswith('B1'):
        return 'gwe'
    elif serial.startswith('B2'):
        return 'gwe2'

    return None



Requesting Test Devices🔗

To test your GWE2 integration, you can request test devices from Allegion Developer Support. Test devices are pre-configured from the factory and ready for commissioning.

How to Request Test Devices🔗

1. Navigate to Allegion Developer Support

   Open your web browser to: Allegion Developer Support Portal

2. Select the Product

   From the “Please choose a product below” dropdown list, select “Engage”.

3. Select the Request Type

   From the “Type” dropdown list, select “Hardware Shipment Request”.

4. Enter the Subject

   In the “Subject” text field, enter: GWE2 Test Devices

5. Enter a description

   In the “Description” text field, you may enter details about your request, or you may leave this field empty.

6. Enter the Purpose

   In the “Purpose” droplist select: GWE2 Test Adoption

7. Enter the Target Completion Date

   In the “Target Completion Date” date select field, enter the date by which you target completion of integration activities.

8. Enter the US-based Shipping Address

   In the “US-based Shipping Address” text field, enter the address where you would like the test devices to be shipped. This location must be inside of the continental United States.

9. Enter the Devices Being Requested (including count)

   In the “Devices Being Requested” text field, enter the devices you would like to request, including the quantity of each device. Example entry: 2x GWE2 Gateways, 4x NDEB Locks

10. Complete and Submit

    Click “Submit” to open your ticket.

    Note

    Devices can only be shipped inside of the continental US. For international destinations, devices must be shipped to final destinations by your company.

The Allegion Developer Support team will process your request and follow up with shipping details.



Requesting Integration Attestation🔗

GWE2 Adoption Attestation Sheet🔗

To ensure partners can complete these changes and get in production with GWE2 in a timely manner, the traditional Validation Process will be replaced with a Feature Adoption Attestation Process.

The Attestation Process outlines the specific, limited changes required to support GWE2 and GWE simultaneously and allows partners to self-validate.

What is Attestation?🔗

GWE2 Adoption Attestation is a simplified version of Allegion’s typical Validation Process, used to confirm that PACS software is fully functional and ready for production use. In this simplified approach to validation, partners will use the GWE2 Adoption Attestation Sheet to affirm they have implemented all necessary requirements to support the GWE2 Gateway.

During attestation, you will:

• Review your integration implementation against the attestation sheet requirements
• Test your solution to confirm it works correctly with GWE2 devices
• Verify that all required functionality operates as expected
• Confirm your solution is ready for production deployment
• Include a date of attestation and name of the person who completed the sheet at your company

How to Request Attestation Review🔗

1. Navigate to Allegion Developer Support

   Open your web browser and go to: Allegion Developer Support Portal

2. Select the Product

   From the “Please choose a product below” dropdown list, select “Engage”.

3. Select the Request Type

   From the “Type” dropdown list, select “GWE2 Attestation Request”.

4. Complete and Submit

   Fill in the remaining required fields on the form, including details about your integration and what you’re ready to have reviewed. Click “Submit” to send your request.

The Allegion Developer Support team will review your sheet and provide any additional instructions.



Success Criteria🔗

Your integration is considered successfully attested when you can demonstrate:



Frequently Asked Questions🔗

What happens to existing GWE devices already deployed in the field?

Existing GWE devices will continue to operate normally. Allegion will continue to fully support GWE devices in the field - including providing firmware updates - for the foreseeable future. There is no end-of-support date for GWE. This adoption is specifically about supporting new hardware orders going forward—your existing installations are not affected.

Can I deploy GWE2 alongside existing GWE devices at the same site?

Yes, absolutely. You can and should plan to deploy GWE2 devices alongside existing GWE devices at the same site. Your PACS software should support both device types simultaneously, and both will function correctly together within the same site infrastructure.

Will I need to support both GWE and GWE2 forever?

Yes. Both device types will remain in the field for the foreseeable future. Partners who have GWE devices deployed will continue to have them operational alongside new GWE2 deployments. Your software should support both models.

How long will it take to implement GWE2 support?

We anticipate that with this simple change, most partners can complete the integration updates within 1–4 weeks of development effort. The changes are limited to recognizing the new model identifier in API endpoints and responses, plus ensuring TLS 1.2+ compatibility if not already in place.

What if I don't complete the integration by April 2026?

While there is no strict deadline that would break your existing integration, after April 2026, stock of the original GWE will be depleted and only GWE2 will be available for purchase. If your software doesn’t support GWE2, your customers will not be able to purchase new gateways for their installations. We recommend completing the integration as soon as possible to avoid any gaps in your ability to support customer orders.

Are there any changes to the RSI protocol?

No. There are no changes to the RSI protocol between GWE and GWE2. All commands, responses, and functionality remain completely identical. In RSI messages, the GWE2 will continue to be referred to as “GWE” or “ENGAGE Gateway.”

What about Websockets mode? Are there any changes?

No. Websockets support is identical between GWE and GWE2. All features and functionality remain unchanged. The only update needed is to recognize the gwe2 model identifier in responses.

Why does GWE2 only support 5 edge devices instead of 10?

The 5-device limit on GWE2 was implemented to improve performance and reliability for connected devices. Allegion has found that less than 5% of global sites are deployed with more than 5 devices connected to a single gateway. For the small number of sites that require more than 5 devices, deploying two GWE2 units is the recommended approach.

What devices are compatible with GWE2?

GWE2 is compatible with all the same edge devices as the original GWE, including: NDE, NDEB, LE, LEB, Control (CNTRL, CNTRLB), CTE, and RMRU. There are no devices that work with GWE that will not work with GWE2.

Is zero-configuration commissioning still available?

No. GWE2 does not support zero-configuration commissioning. The gateway must be commissioned using DHCP or a static IP address. This feature was rarely used in field deployments and has been removed from GWE2.

What TLS versions does GWE2 support?

GWE2 supports only TLS 1.2 and TLS 1.3. Older protocols (SSLv3, TLS 1.0, TLS 1.1) are not supported. If your system currently uses TLS 1.0 or 1.1, you must update to TLS 1.2 or higher.

How do I update firmware on GWE2?

GWE2 firmware must be updated using the ENGAGE Mobile App over Bluetooth (BLE). Over-the-network firmware updates via RSI are not supported on GWE2 until Q2 2027.

What mobile app version is required for commissioning GWE2?

You must use the latest version of the ENGAGE Mobile App to commission GWE2 devices. The commissioning process itself is identical to GWE—there are no new steps or screens specific to GWE2.

Does GWE2 require WPA3 for mobile app commissioning?

Yes. GWE2 communicates with mobile apps using WPA3 only (Soft AP mode). Older Android and iOS devices that do not support WPA3 will not be able to commission GWE2 devices directly. Ensure your field technicians have devices that support WPA3 wireless security.

Is the pricing for GWE2 the same as GWE?

Yes, GWE2 pricing will be the same as GWE. Note that the SKU/part number will change for GWE2. Contact your Allegion sales representative for ordering details.

Will Allegion continue to provide firmware updates for GWE?

Yes. Allegion will continue to provide firmware updates for GWE devices for the foreseeable future. There is no planned end-of-support date for GWE firmware.

What are the physical differences between GWE and GWE2?

The main physical differences are:

• Antenna: GWE2 has a smaller antenna (2.5 inches vs 3.5 inches) with equivalent signal strength
• Serial number: GWE2 serial numbers start with “B2” (GWE starts with “B1”)
• Labeling: GWE2 has an orange sticker on the product and packaging for easy identification
• Power adapter port: GWE2 does not have an external power adapter port (use PoE or ACP 2-wire DC)
• Wiring label: RS-485 connection labeling has been updated to standard nomenclature



Support & Resources🔗

Architecture Diagrams🔗

The following diagrams illustrate the various ENGAGE integration architectures. GWE2 operates identically to GWE in all of these configurations.









Developer Support🔗

Resource	Details
Support Portal	developersupport.allegion.com
Submit a Request	Open a Support Ticket
Email	Email Support
Phone	1.877.671.7011 (Option 2, then Option 2) — Monday – Friday, 8 AM – 8 PM EST

Related Documentation🔗

• ENGAGE Gateway Data Sheet

• ENGAGE Gateway Installation Guide

• ENGAGE User Guide

• GWE2 Adoption Attestation Sheet (Download)

Quick Links🔗

• Request Test Devices
• Request Integration Attestation
• Frequently Asked Questions



---

Questions about this guide? Contact Allegion Developer Support

© 2026 Allegion. All rights reserved.
