Using POSTMAN in Gateway IP Mode

Revision Control Record

VERSION	Date	DESCRIPTION OF CHANGE	AUTHOR
0.01	01/16/2019	Initial Draft	R. Verde
0.02	01/22/2019	Reformatted draft to adjust spacing, edited grammar.	A. Clark
0.03	07/01/2019	Updated content to show latest information	A. Clark

Introduction

The primary purpose of this document is to provide instruction on the setup for a Gateway in IP mode to be communicated through API calls via Postman. Postman enables our SAM partner to make API development simpler to understand.

Abbreviations and Definitions

Abbreviation	Definition
API	Application Program Interface – The interface provided by the ENGAGE enabled devices and Web Application
BLE	Bluetooth Low Energy
Commission	Process in which the device gets a replaceable encryption key (REK) or the site key.
Db, DB	Database
DHCP	Dynamic Host Configuration Protocol
Edge Device	Any ENGAGE enabled device used for access control such as an NDE or LE lock.
ENGAGE	Connectivity Platform Technology
Host or Host Server	An Alliance Partner server, external server outside of the Allegion domain
HTTP	Hypertext Transfer Protocol
HTTPS	HTTP Secure, or HTTP over SSL
IP	Internet Protocol
IPv4	Internet Protocol version 4
JSON	Java Script Object Notation
LAN	Local Area Network
MAPP	Mobile Application
Mobile Device	A hand-held computer that is made for portability. (i.e. tablets, smart phones, iPads, etc.)
NDE	Schlage ENGAGE™ Wireless Cylindrical Lock
REST	Representational State Transfer, RESTful web services provide a means of computer system interoperability using a predefined set of stateless operations. W3 Consortium REST Notes are located here
SAM	Allegion ENGAGE Software Alliance Member
Site	Logical grouping of ENGAGE devices which all share the same site key. In Engage this is referred to as a facility.
Site Key	The site key is a key that is used on all Engage enabled devices on a site, (e.g. In a building or on a floor in a building).
SSL	Secure Sockets Layer, a standard security technology which allows encrypted links to be established between nodes is a network
TLS	Transport Layer Security, cryptographic protocol allowing for secure communications

APIs Shown

NOTE: APIs shown within this page are only examples of some of the APIs used in POSTMAN and are not intended to be an all inclusive list. The User can click on the links below to go to the detail page for each API if more information is needed.

GET {{GatewayIP}}/gateway/newCredentials

PUT {{GatewayIP}}/gateway/newCredentials

GET {{GatewayIP}}/edgeDevices/linkList

GET {{GatewayIP}}/edgeDevices/lockStatus

PUT {{GatewayIP}}/edgeDevices/dev00000/database

Commission ENGAGE Devices

Log into your ENGAGE Partner Managed account with the Mobile Application (MAPP)
Commission the ENGAGE device
Connect the Gateway to the local area network. Gateway and host PC (POSTMAN) must be on the same subnet
Commission the Gateway
- FDR the Gateway
- Select IP mode and use DHCP
- Once commissioned, connect back to the Gateway and obtain the IP address
On the MAPP
- Go to SETTINGS
- Advanced
  - IP Adress
    - in this example, IP Adress = https://10.45.169.56

Validation of Certificate

The Certificate needs to be validated
Using the host PC, connect to the Gateway by browsing to its IP address
Gateway uses TLS protocol to communicate

Example: Browse to https://10.45.169.56 using Google Chrome

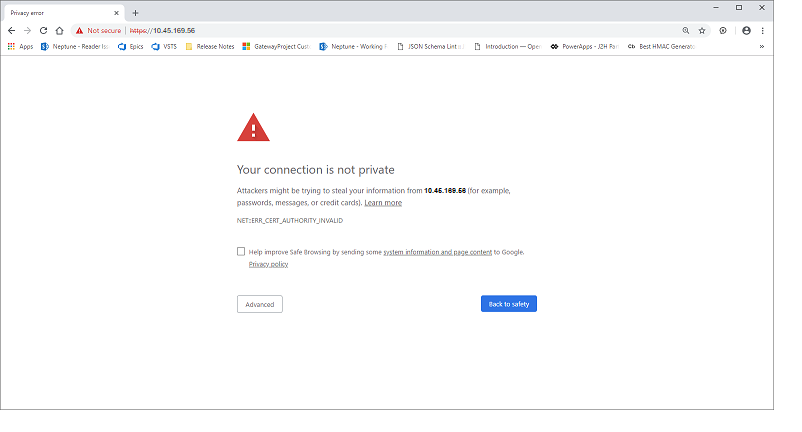

Select Advanced

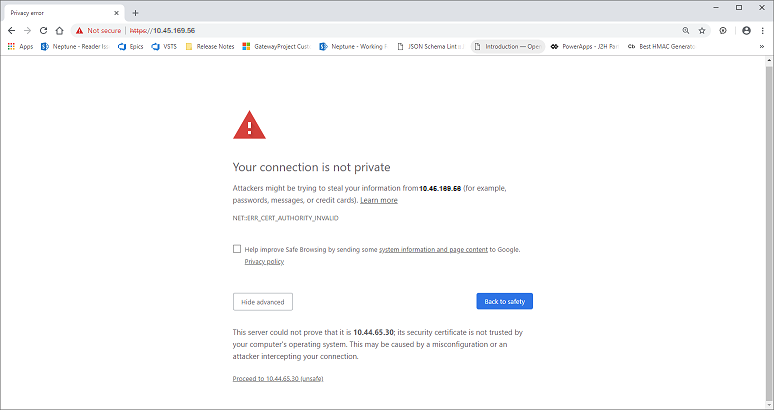

Proceed to the IP address

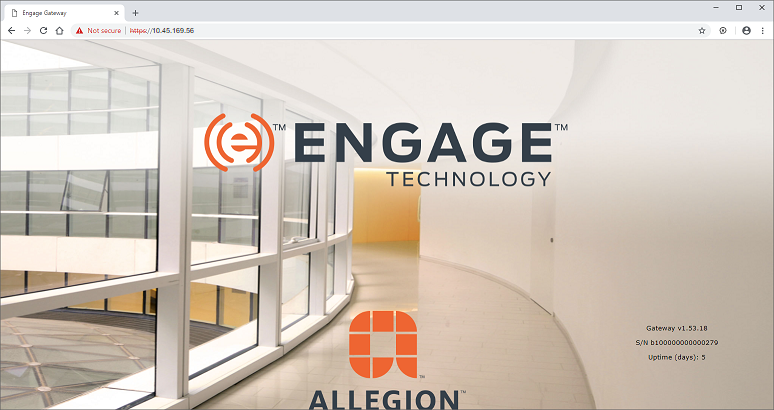

The following screen displays, confirming the Certificate is validated

Postman: Configuring the Environment

Postman needs to be installed on the host PC. Postman can be downloaded for free from https://www.getpostman.com
Create an Environment

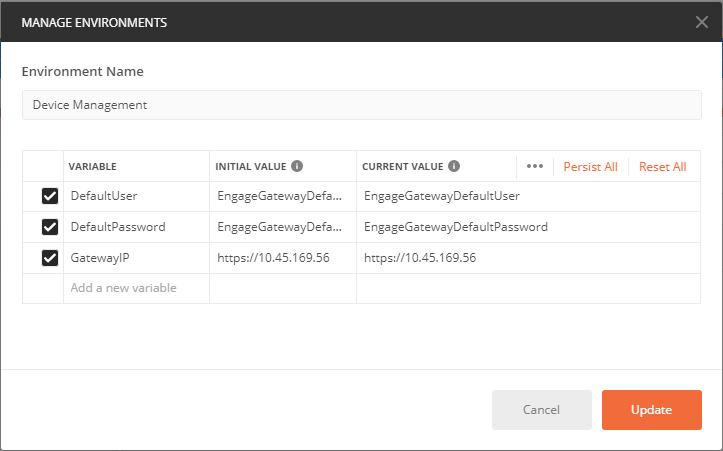

- Select Manage Environments and click Add
- Include the following variables initially:

Configure Gateway Authorization

Open Postman and perform the following steps:

Select the environment created and import the collection of APIs into Postman

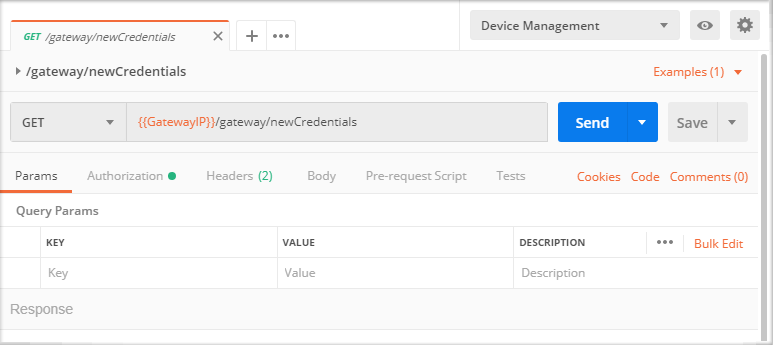

- Perform a GET {{GatewayIP}}/gateway/newCredentials
Figure 1: API = GET {{GatewayIP}}/gateway/newCredentials
Set the following Current Values in the Postman Environment Name quick look view, Figure 2.
- DefaultUser = EngageGatewayDefaultUser
- DefaultPassword = EngageGatewayDefaultPassword
- GatewayIP is obtained from the MAPP
  - Device Settings
    - Advanced
      - IP Address (in this example) = https://10.45.169.56

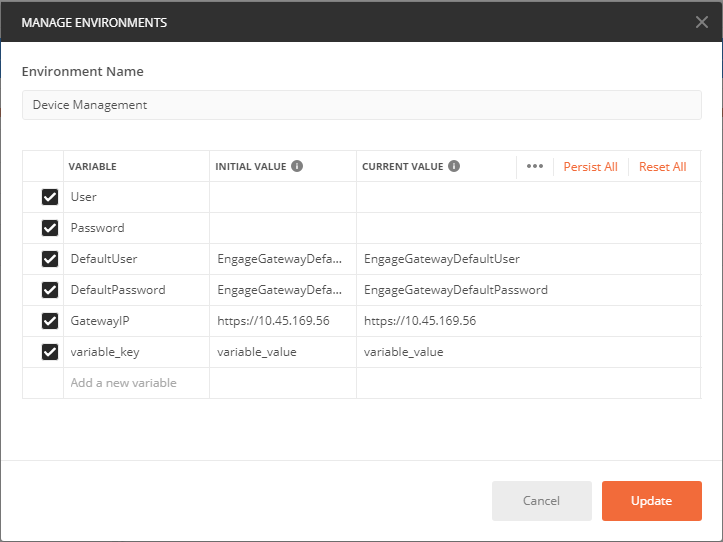

Figure 2: Manage Environments

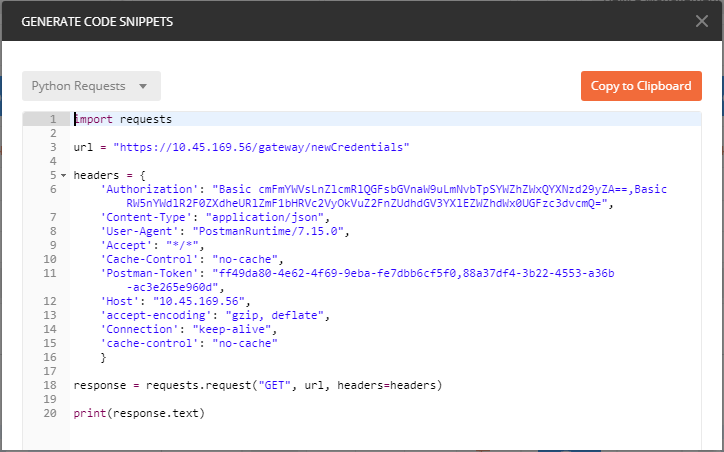

The actual message that Postman sends to the Gateway is shown in Figure 3 to highlight what Postman is sending and does not require action by the operator.

Figure 3: Postman Message Sent to Gateway
The return message from the newCredentials API command is shown in Figure 4 and does not require action by the operator.
- Usr = is the user id, generated by the gateway
- Pwd = is the password now established on the gateway

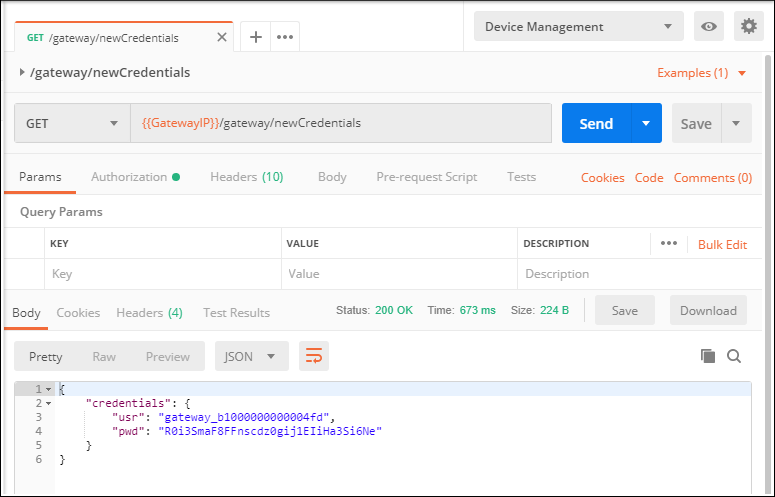

Figure 4: Return Message

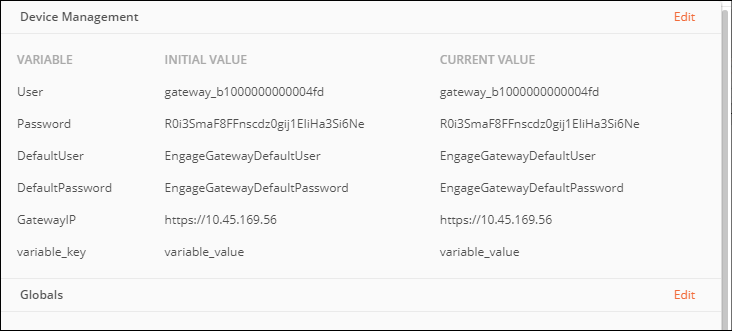

Figure 5 shows the modifications necessary to the Postman Environment quick look.

Figure 5: Postman Environment Modifications
Adding User and Password. Figure 6 shows the PUT newCredentials command.

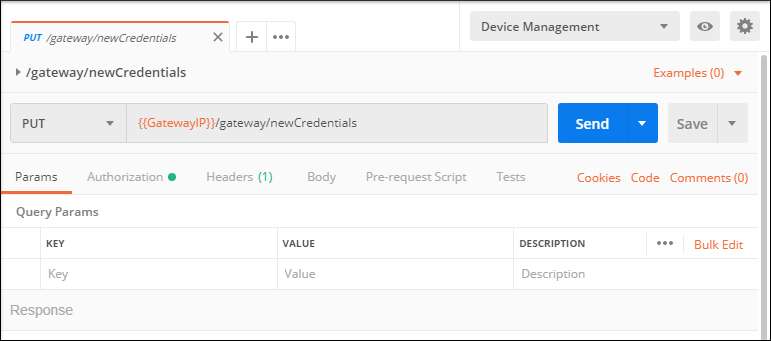

Figure 6: API = PUT {{GatewayIP}}/gateway/newCredentials
Figure 7 illustrates the command Postman sends to the Gateway. No user interaction is necessary. This figure is shown for display purposes only.

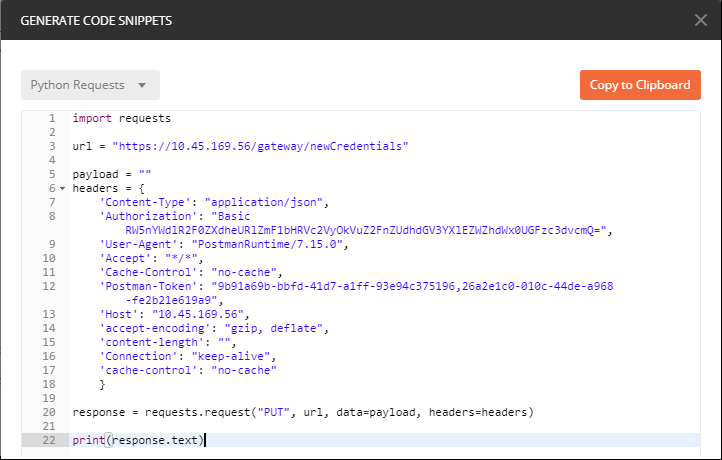

Figure 7: Command Postman Sends to Gateway

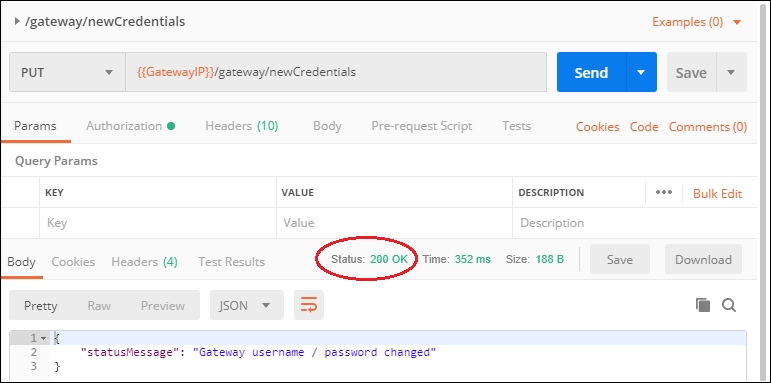

Figure 8 shows the successful transaction completed; note the Status: 200 OK.

Note:

All Postman commands are sent by selecting the Send button.
Figure 3 and Figure 7 are obtained by selecting the Code button.

Link ENGAGE Devices to Gateway

Connect to Gateway through Mobile app
Select Link Devices and add device
An audible confirmation will be heard from the device with the app also indicating a successful link

Using API Calls via Postman

To confirm the device is linked to the Gateway, perform the following GET:
GET {{GatewayIP}}/edgeDevices/linkList
Perform a GET on lock status
GET {{GatewayIP}}/edgeDevices/lockStatus
Perform a PUT of a database to the device.
PUT {{GatewayIP}}/edgeDevices/dev00000/database

The SAM partner should review the collection of APIs and understand how they can be used in their integration.
